Pipe Clamp | Power-Clip®

High quality pipe clip for industry - Ensures professional and simple installation. Power-Flex carries a wide range in all sizes, insulated or without insulation. Buy the product online at Power-Flex.

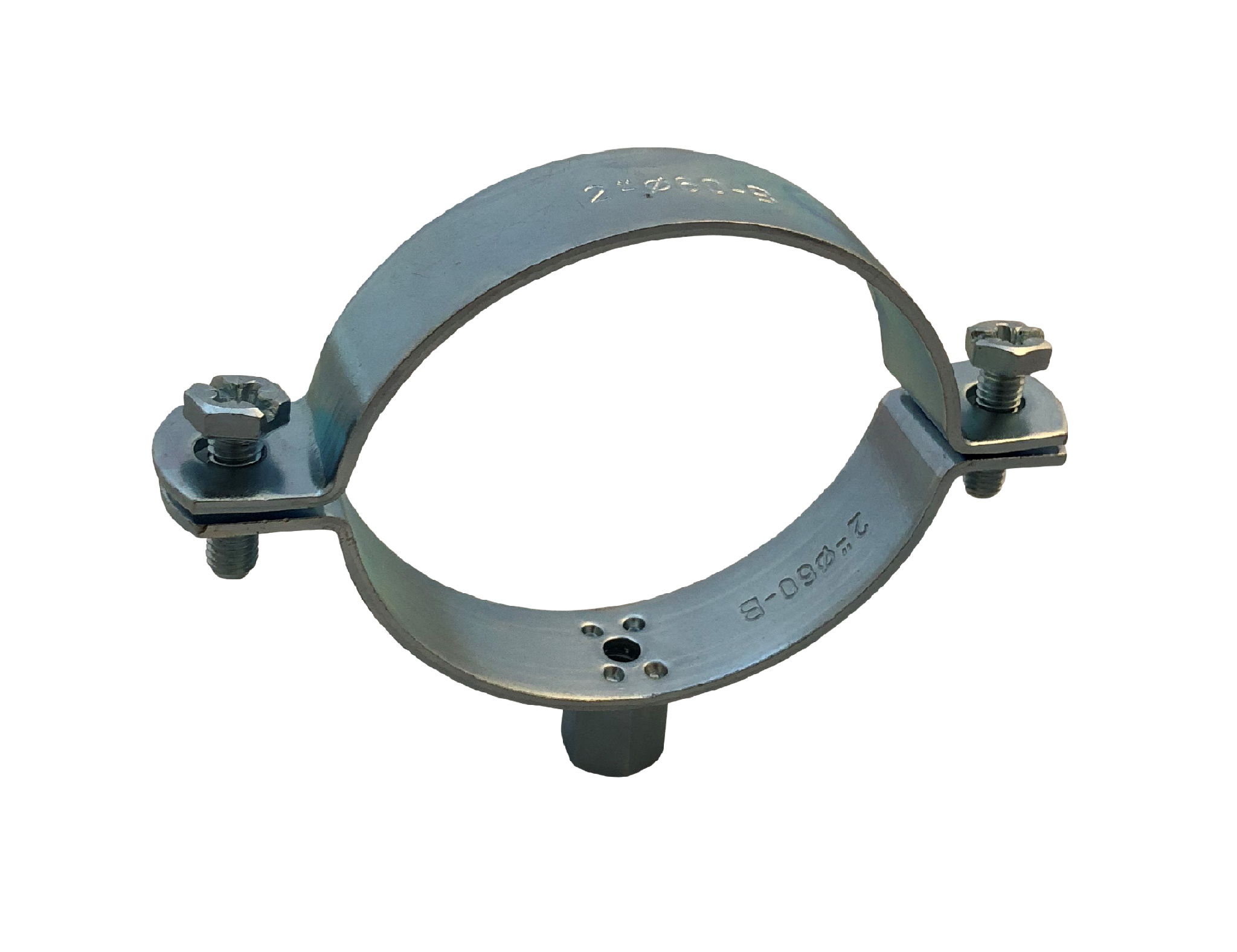

Pipe clip, with anti-loss side screws to facilitate fixation of pipes, hoses and horizontal/vertical installations.

A combination connection thread (M8/M10) permits pipelines with an outer diameter of 16mm-505mm.

Band width 20 and 28 mm
Design Pipe Holder
Construction
Mounting Bolt
Diameter
Diameter
Material
Sortering: Nominal Ø
Item no
Name
Nominal Ø
PCS. per. box
W1
18
RB-018
Pipe Clamp 017-020W1
18
50 / 50
W5
18
RB-018W5
Pipe Clamp 016-020W5
18
50 / 50
W1
22
RB-022
Pipe Clamp 020-025W1
22
50 / 50
W5
22
RB-022W5
Pipe Clamp 020-025W5
22
50 / 50
W1
28
RB-028
Pipe Clamp 026-032W1
28
50 / 50
W5
28
RB-028W5
Pipe Clamp 026-031W5
28
50 / 50
W1
35
RB-035
Pipe Clamp 033-038W1
35
50 / 50
W5
35
RB-035W5
Pipe Clamp 031-036W5
35
50 / 50
W1
40
RB-040
Pipe Clamp 038-043W1
40
50 / 50
W5
40
RB-040W5
Pipe Clamp 038-044W5
40
50 / 50
W1
48
RB-048
Pipe Clamp 048-053W1
48
50 / 50
W5
48
RB-048W5
Pipe Clamp 045-051W5
48
50 / 50
W1
54
RB-054
Pipe Clamp 052-057W1
54
50 / 50
W5
54
RB-054W5
Pipe Clamp 052-057W5
54
50 / 50
W1
60
RB-060
Pipe Clamp 060-063W1
60
50 / 50
W5
60
RB-060W5
Pipe Clamp 060-063W1
60
50 / 50
W1
70
RB-070
Pipe Clamp 068-074W1
70
50 / 50
W5
70
RB-070W5
Pipe Clamp 069-073W5
70
50 / 50
W1
75
RB-075
Pipe Clamp 074-080W1
75
50 / 50
W5
75
RB-075W5
Pipe Clamp 073-077W5
75
50 / 50
W1
84
RB-084
Pipe Clamp 081-084W1
84
25 / 25
W5
84
RB-084W5
Pipe Clamp 083-086W5
84
25 / 25
W1
90
RB-090
Pipe Clamp 087-093W1
90
25 / 25
W5
90
RB-090W5
Pipe Clamp 087-094W5
90
25 / 25
W1
100
RB-100
Pipe Clamp 096-100W1
100
25 / 25
W5
100
RB-100W5
Pipe Clamp 097-104W5
100
25 / 25
W1
110
RB-110
Pipe Clamp 107-112W1
110
25 / 25
W5
110
RB-110W5
Pipe Clamp 107-114W5
110
25 / 25
W1
115
RB-115
Pipe Clamp 109-115W1
115
25 / 25
W5
115
RB-115W5
Pipe Clamp 110-118W5
115
25 / 25
W1
125
RB-125
Pipe Clamp 125-131W1
125
25 / 25
W5
125
RB-125W5
Pipe Clamp 123-131W5
125
25 / 25
W5
133
RB-133W5
Pipe Clamp 131-135W5
133
25 / 25
W1
140
RB-140
Pipe Clamp 138-144W1
140
25 / 25
W5
140
RB-140W5
Pipe Clamp 136-145W5
140
25 / 25
W1
150
RB-150
Pipe Clamp 149-160W1
150
25 / 25
W5
150
RB-150W5
Pipe Clamp 147-155W5
150
25 / 25
W5
154
RB-154W5
Pipe Clamp 153-159W5
154
25 / 25
W1
160
RB-160
Pipe Clamp 158-165W1
160
25 / 25
W5
160
RB-160W5
Pipe Clamp 158-164W5
160
25 / 25
W1
180
RB-180
Pipe Clamp 179-185W1
180
25 / 25
W5
180
RB-180W5
Pipe Clamp 178-184W5
180
25 / 25
W1
200
RB-200
Pipe Clamp 199-206W1
200
25 / 25
W5
204
RB-204W5
Pipe Clamp 200-206W5
204
25 / 25
W5
220
RB-220W5
Pipe Clamp 215-220W5
220
25 / 25
W1
220
RB-220
Pipe Clamp 215-220W1
220
25 / 25
W1
225
RB-225
Pipe Clamp 218-230W1
225
25 / 25
W5
225
RB-225W5
Pipe Clamp 223-227W5
225
25 / 25
W1
250
RB-250
Pipe Clamp 248-255W1
250
25 / 25
W5
250
RB-250W5
Pipe Clamp 249-256W5
250
25 / 25
W5
280
RB-280W5
Pipe Clamp 279-285W5
280
25 / 25
W1
280
RB-280
Pipe Clamp 279-284W1
280
25 / 25
W1
300
RB-300
Pipe Clamp 300-311W1
300
25 / 25
W5
300
RB-300W5
Pipe Clamp 300-307W5
300
25 / 25
W5
315
RB-315W5
Pipe Clamp 314-321W5
315
25 / 25
W1
350
RB-350
Pipe Clamp 348-355W1
350
25 / 25
W5
350
RB-350W5
Pipe Clamp 350-359W5
350
25 / 25
W1
400
RB-400
Pipe Clamp 398-410W1
400
25 / 25
W5
400
RB-400W5
Pipe Clamp 398-408W5
400
25 / 25
W1
450
RB-450
Pipe Clamp 447-458W1
450
25 / 25
W5
500
RB-500W5
Pipe Clamp 499-505W5
500
25 / 25
W1
500
RB-500
Pipe Clamp 499-506W1
500
25 / 25
